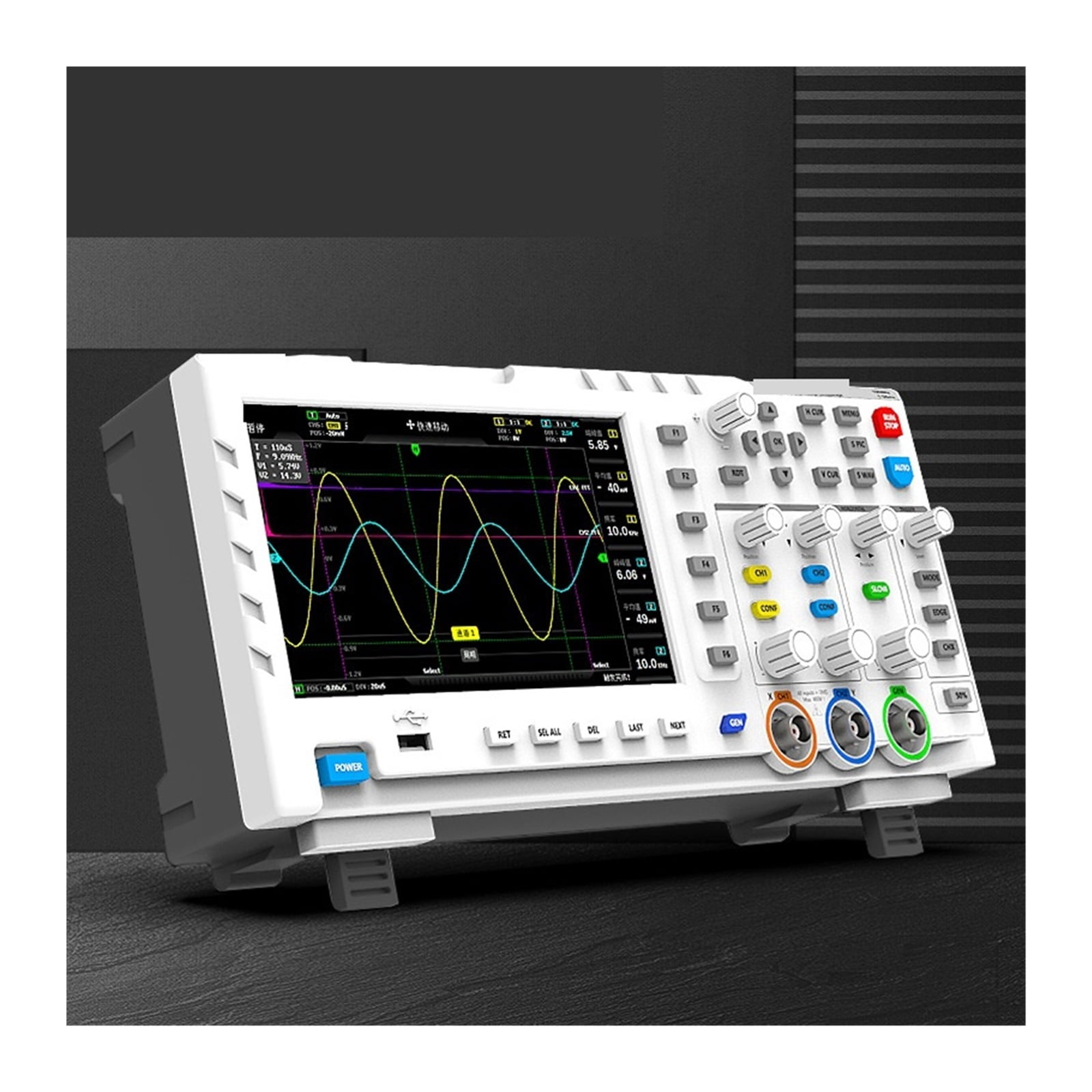

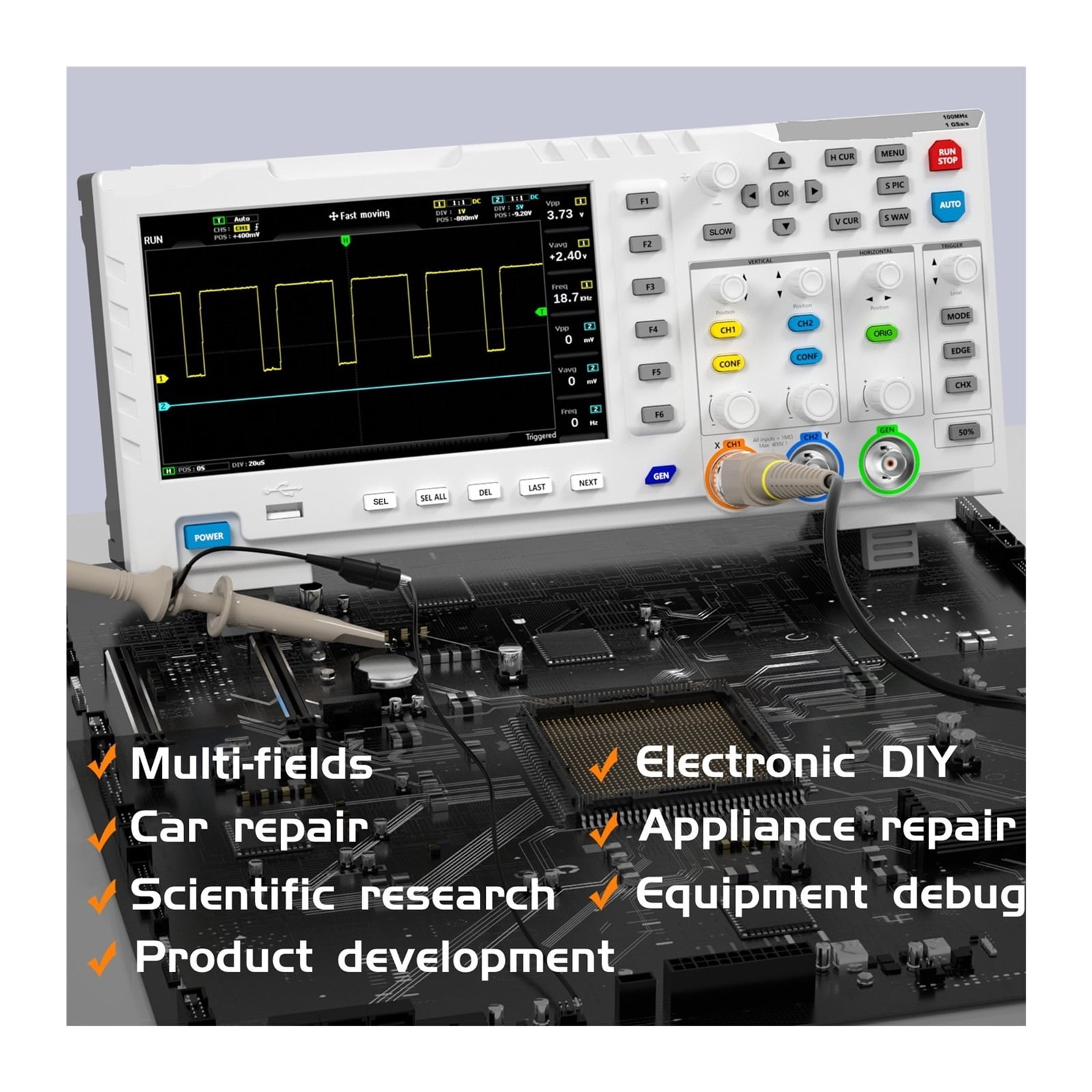

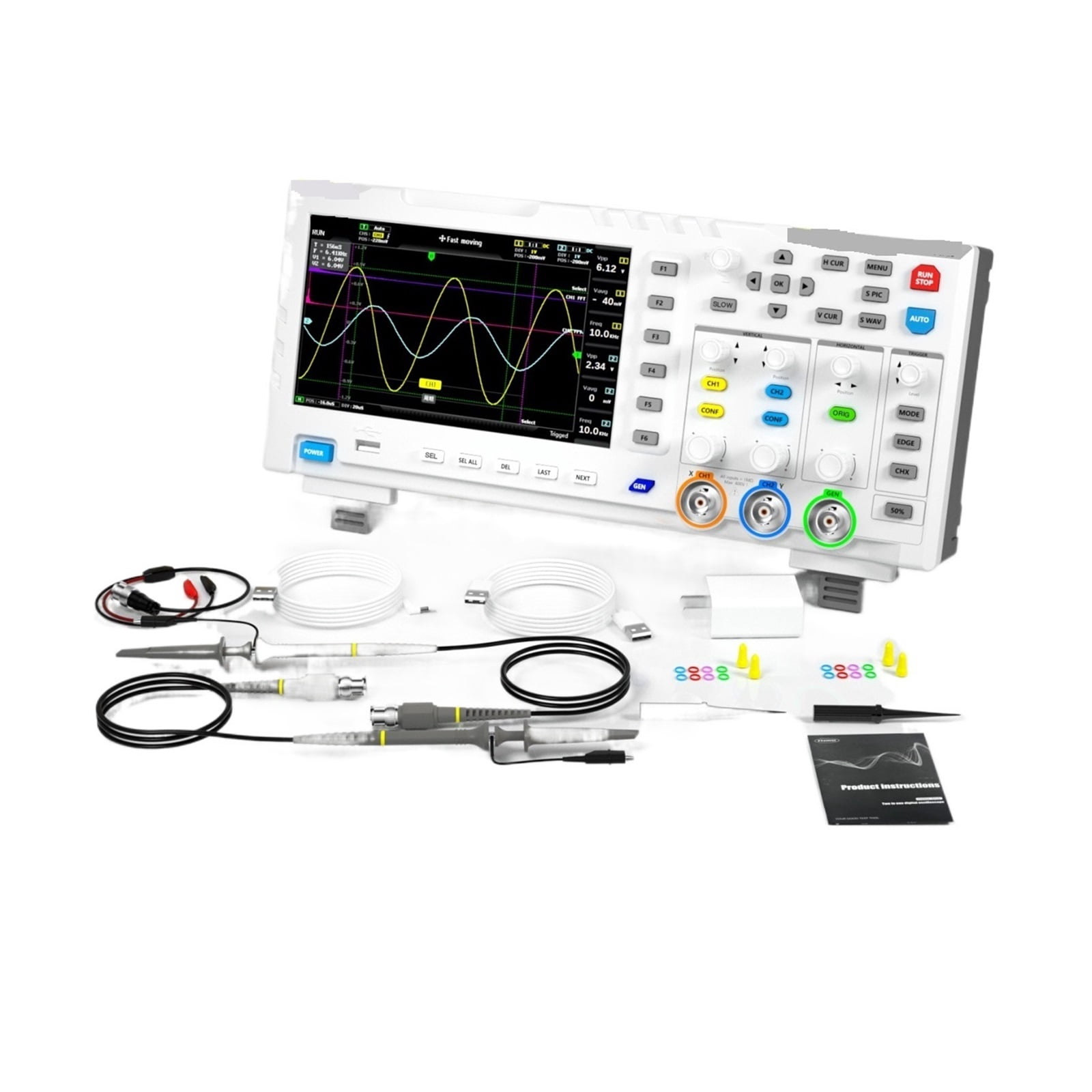

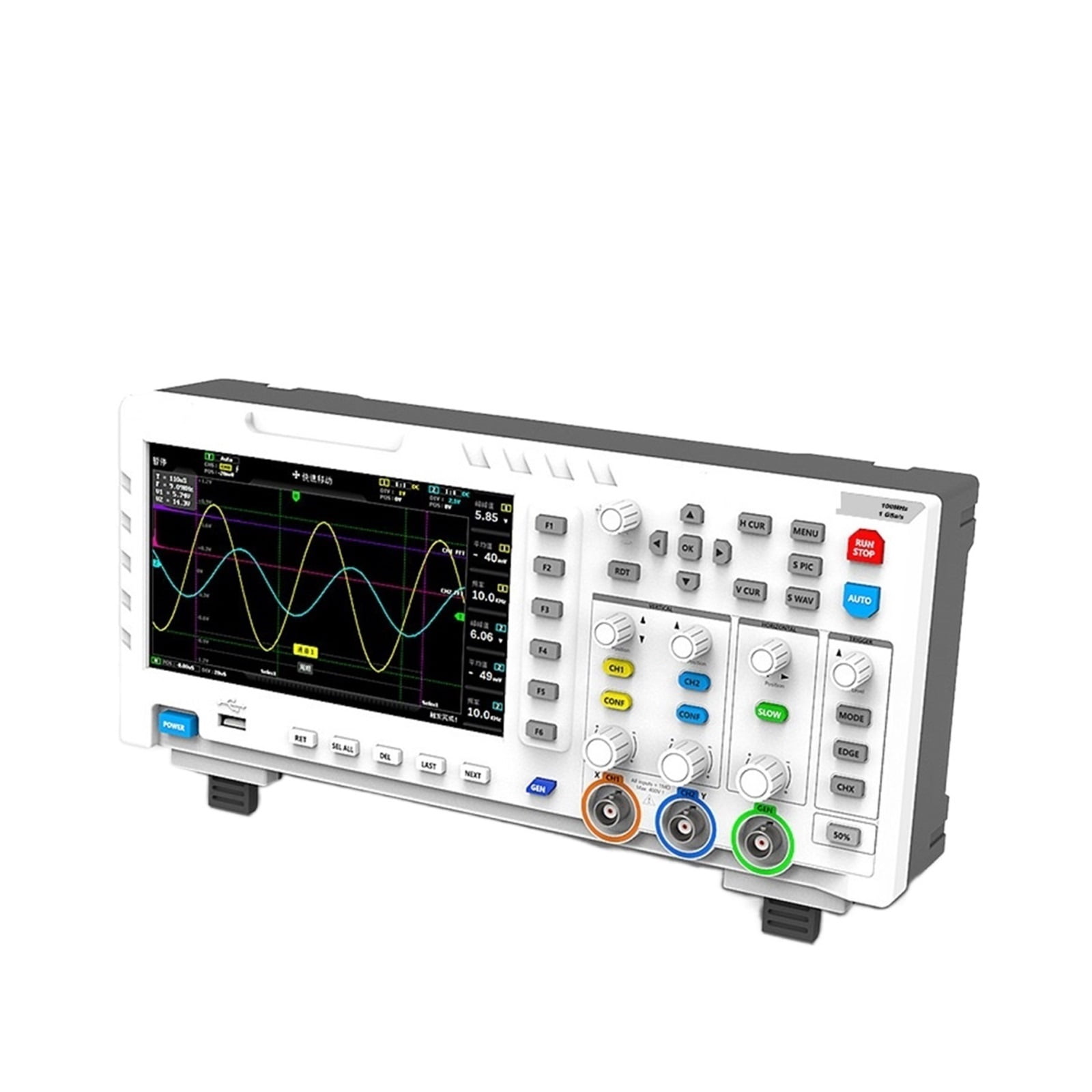

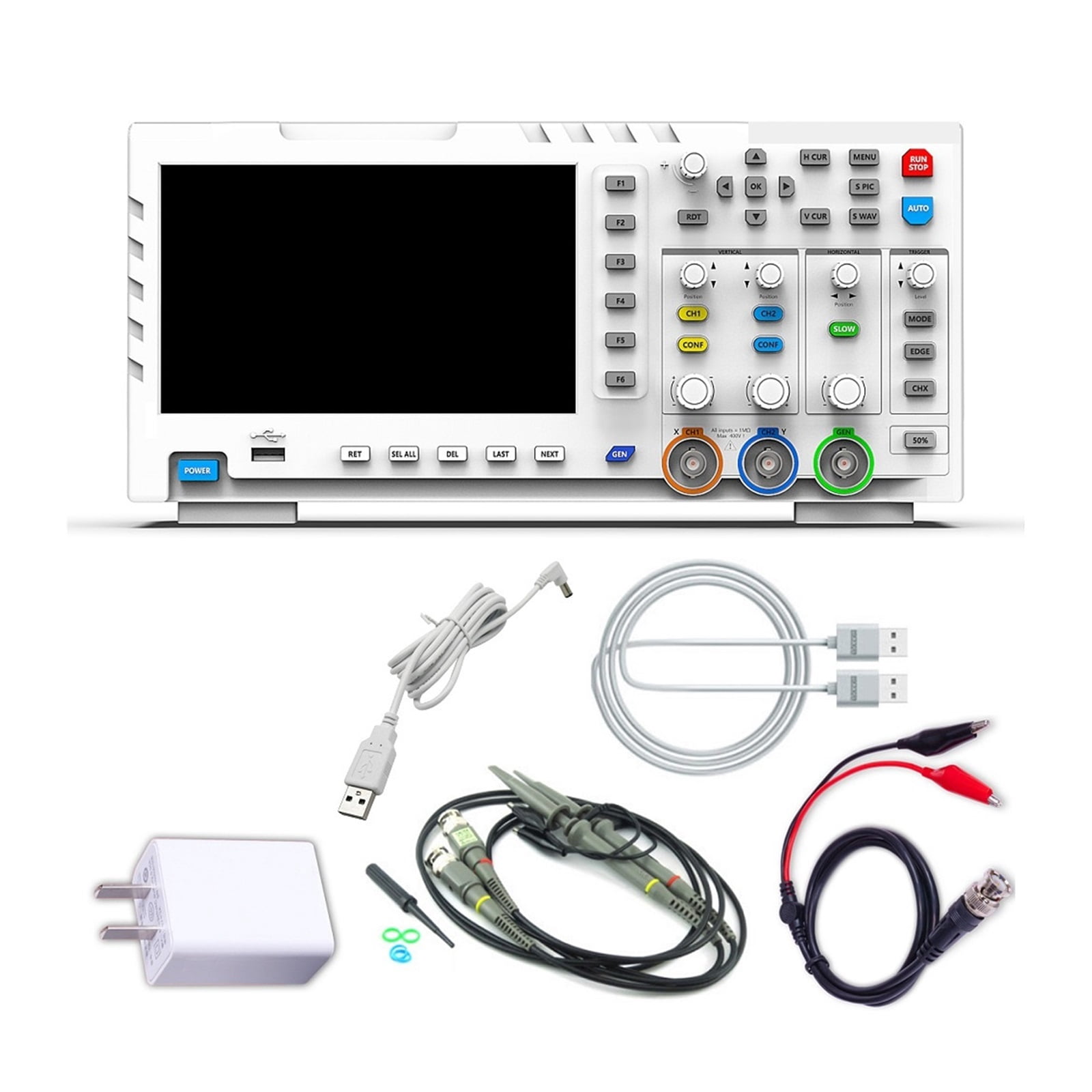

1014D Desktop Oscilloscope 100MHZ*2 1GS/s 2 In 1 Dual Channel Digital Oscilloscope 10MHZ Signal Generator ,Professional Designed

<p>Features:</p><p>Complete triggering function (single, normal, automatic), and at any time, the waveform display (pause function) is frozen.</p><p>Equipped with One-button AUTO, and one-button waveform storage and screenshot function.</p><p>Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.</p><p>Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.</p><p>Equipped with a USB interface, which can be connected to a com-puter to share its screenshots with the com-puter, which is convenient for secondary analysis.</p><p>Display function, can analyze the spectral characteristics of the signal, memory compression technology, waveform refresh screen does not flicker.</p><p>With the screen brightness adjustment function and background gr-id brightness adjustment function, also easy to carry.</p><p></p><p>Specifications:</p><p>Material: ABS</p><p>Ana-log band width: 100MHz * 2</p><p>Number of channels: 2 channels</p><p>Maximum real time sampling rate: 1GSa/s</p><p>Horizontal time base range: 50S/div ~ 10nS/div</p><p>Storage depth: 240Kbit</p><p>Input resistance: 1M</p><p>ADC precision: 8bits</p><p>Coupling mode: AC/DC</p><p>Trigger mode: Single, Normal, Auto</p><p>Trigger edge: Rising edge/Falling edge</p><p>Extension ports: USB picture export</p><p>Related Products: </p><p>oscilloscope, </p><p>portable oscilloscope, </p><p>automotive oscilloscope, </p><p>oscilloscope automotive, </p><p>lab oscilloscopes, </p><p>osciloscopio, </p><p>osciloscopio automotriz, </p><p>handheld oscilloscope, </p><p>digital oscilloscope, </p><p>usb oscilloscope</p>

• Built in DDS signal generator, support 12 kinds of function signal.
• Capture output signal function, which can store up to 1000 capture signals.
• With 100MHz * 2 ana-log bandwidth and @ 1GSa/s sampling rate(1X = 5MHz, 10X = 100MHz).
• Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast.
• Cursor measurement function: it is convenient to manually measure the period and frequency and voltage.
