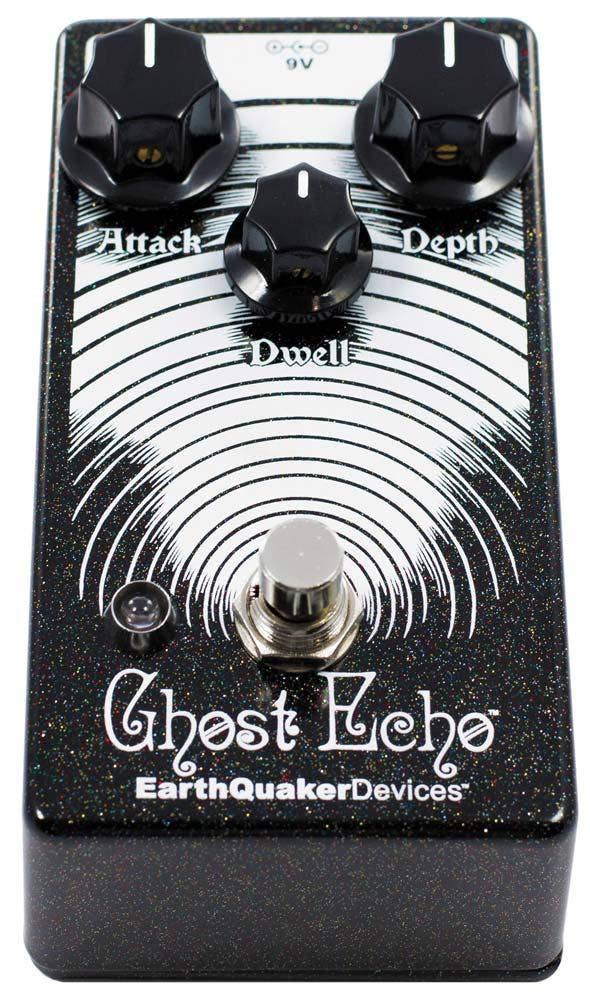

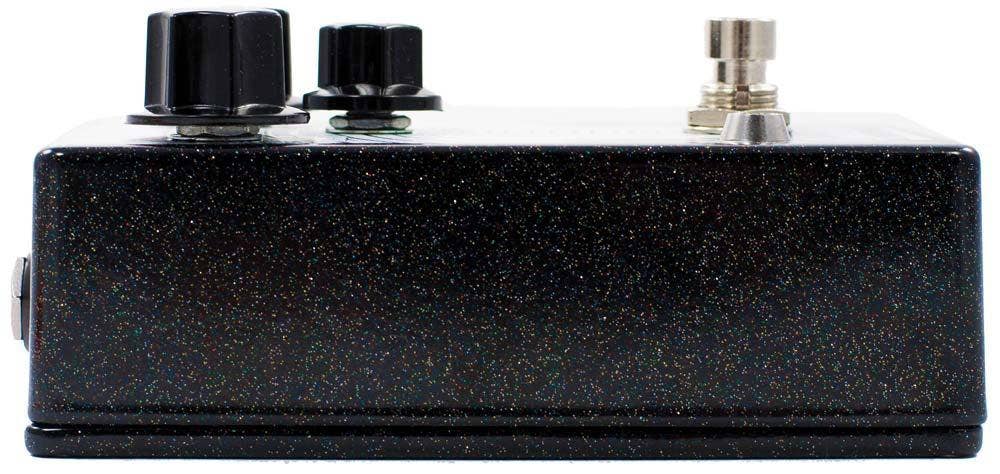

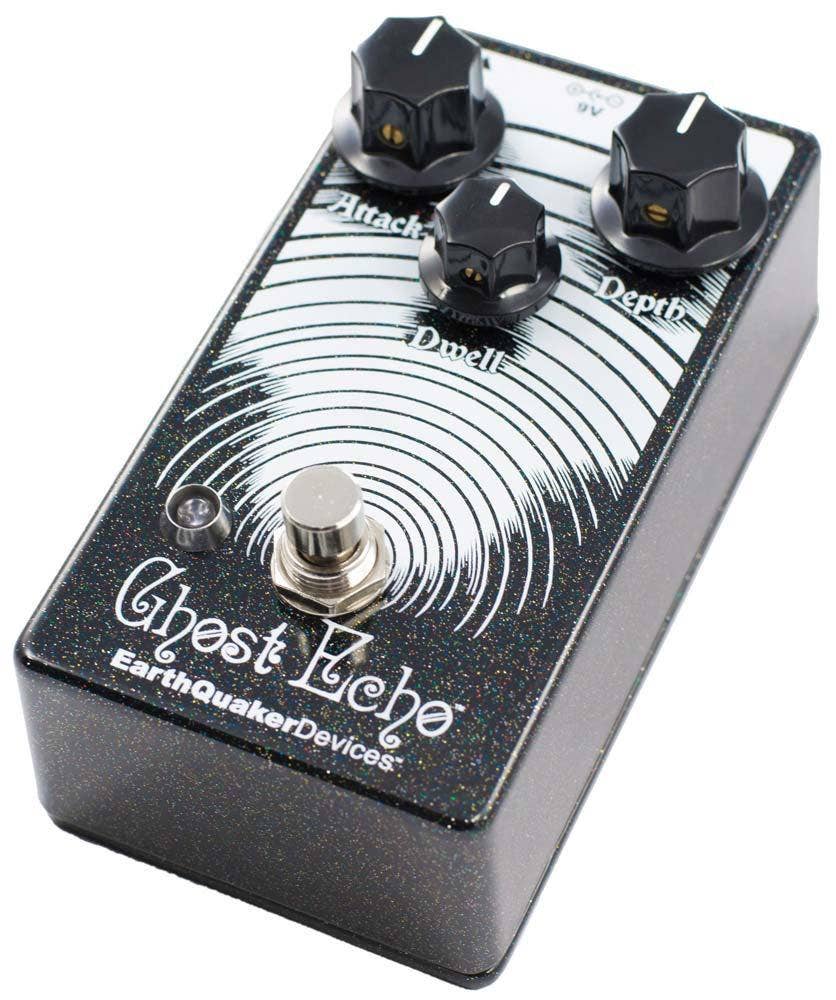

Earthquaker Devices EQD Ghost Echo Reverb V3 Guitar Effect Pedal

The Ghost Echo Reverb is designed to emulate a vintage reverb unit. It 's capable of providing a little atmosphere all the way through to vast depths. The attack control sets the delay of the initial pick attack on the wet signal only. When playing staccato this registers as a slap back type echo hitting the reverb but when playing fluid lines it adds a massive depth and "fattens" up the sound. The dwell control is a fine tune function that enhances the decay. At first it may seem like it's not there but back it off and you'll miss it. The depth controls the intensity of the reverb. 9 Volt DC power supply not included. Hand made in Akron, Ohio.<br><br><span style="font-weight:bold;">V3 Updates:</span><br>Upgraded op-amps for better performance and lower noise <br>Stronger reverb signal with 2x the output <br>Recalibrated Dwell control capable of self-oscillations when all the way up <br>New artwork <br>Silent relay-based switching<br><br><span style="font-weight:bold;">Get your EarthQuaker Devices Ghost Echo V3 Vintage Voiced Reverb Pedal today at the guaranteed lowest price from Sam Ash Direct with our 45-day return and 60-day price protection policy. </span><br><br>⚠️<span style="font-style:italic;">WARNING: This product can expose you to chemicals including Cobalt, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to [http://www.P65Warnings.ca.gov.%3c/span]www.P65Warnings.ca.gov.</span>

• Earthquaker Devices EQD Ghost Echo Reverb V3 Guitar Effect Pedal
• Ghost Echo™Vintage Voiced Reverb

  You hear that EVP, bud? It’s the all new, extra spook-tacular, Ghost Echo calling out from beyond the void! The Ghost Echo is our spooky take on the haunted* amp-top spring reverberation units of yesteryear. This creepy analog/digital spring reverb emulation machine boasts a terrifying 30ms – 150ms of pre-delay, controllable via the Attack knob, for everything from a quick rockabilly slapback to viscous pools of ectoplasmic reverberations. When playing staccato, you’ll hear the tortured trails of the reverb, resulting in more of a slapback or echo sound. Legato playing will reveal a massive ambient “depth” that fattens up the sound – and look out, it’s right behind you!

  Phew, that was close. The Dwell control sets the length and thickness of the decay, which is to say that it controls how long the disembodied spirits of notes no longer with us float through the ether. At the maximum setting it will descend into an infinite loop of self-oscillation. The Depth sets the intensity of the reverb, which you probably know as the wet/dry mix, but we like to think of it more as how scary the overall effect is.

  The Ghost Echo is true bypass and built one at a time by a team of friendly ghosts in the never-ending hall of funhouse mirrors that is Akron, Ohio, USA.

  V3 UPDATES - JUNE 2017:

  • Upgraded op-amps for better performance and lower noise
  • Stronger reverb signal with 2x the output
  • Recalibrated Dwell control capable of self-oscillations when all the way up
  • New artwork
  • Silent relay-based switching

  *Not actually haunted. Or are they?

  Controls

  Attack: Adjusts the length of the pre-delay, from 30ms at minimum to about 150ms at maximum. When the Dwell is set to self-oscillate, this will change the pitch of the oscillations.

  Dwell: Adjusts the length of the decay. This will start to self-oscillate around 3 O’Clock, the pitch of the oscillations can be changed by turning the Attack control.

  Depth: Mixes in the wet signal with the dry, unity is around noon and everything after is boosted.

  Measures

  4.75″ x 2.50″ x. 2.25″ with knobs

  Power

  The Ghost Echo should be powered by a standard 9-volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. Do not run at higher voltages!

  Current Draw

  80ma

  Input Impedance

  10M

  Output Impedance

  1K
